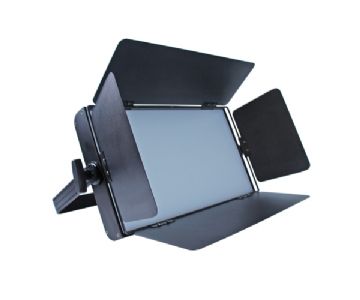

Bicolor LED Soft Video Panel Light

Model:OX-HTC1200C



This light equips two color temperature high cri and brightness led chips, used linear dimmer technology, to realize the product can meet the strict request when the radio and television shooting. No flicker, smooth linear dimmer, no drawing line when filming. The light is very suitable for large-scale tv station, studio, multi-function room and other video places.



Features

·The light’s lighting function is controlled by DMX-512, very convenient;

·Using bead LED chips, pure color temperature, can realize 0-100% dimmer;

·The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable.

Technical Specifications

Light Sources

·LED: 1200pcs 0.2W high CRI and high brightness LED bead chips

·Lifespan: 50,000hours

·Color: from warm white to cold white

Optics

·Beam angle: 120degree

·Dimmer: 0~100% linear dimmer

Light Output

·CRI: Ra≥95

·Color temperature: 3000k-6000k adjustable

Control

·DMX channel: 4CH/5CH

·Control mode: DMX-512, Demo mode, Manual

·Control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 120W

Construction

·Body dimension: D570*W265*H109mm

·Net weight: 5.5kg

·Shell color: black

·Housing material: aluminum alloy

Working Environment

·Working temperature: -25-40℃

·Cooling: aluminum radiator and light body

·Protection rating: IP20

Spare Parts

·Cable: 1set DMX in and DMX out signal cable,  and 1set Power in and Power out power cable with plug [standard configuration]

·Light visor: 1pc light visor [optional configuration]

Package

·Carton board box package size: 650*450*190mm(1pc/carton) [c:18-01-02]

·N.W/G.W/V.W: 5.5kg/7kg/12kg
