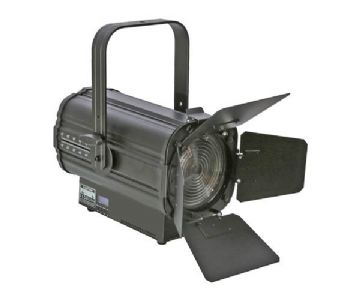

400W LED Fresne Spot Light

Model: OX-PL400W



·This television projector light equips high power 400W cold white or warm white LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places. The light has RDM and DMX function.



Features

·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;

·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;

·Use the LED video projector scheme, the light energy saving 80%;

·Because of almost no infrared radiation, it has greatly improve work environment.

Technical Specifications

Light Sources

·LED: 1pc 400W WW/CW LED Lamps

·Lifespan: 500,000h

·Color temperature: 3200K/5600K

Optics

·Beam angle: 15-65degree

·Dimmer: 0-100% linear dimmer

Light Output

·Optimal projection distance: 3-45m

Control

·Control mode: RDM; DMX-512; Master/slave; Auto run

·DMX channel: 4CH

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 450W

Construction

·Body dimension: D407*W337*H312mm

·Net weight: 13kg

·Shell color: black

·Shell material: iron

Working Environment

·Working temperature: -25-40℃

·Cooling: Radiator and Fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional

·Safety rope: different size safety ropes optional

Package

·Carton board package size: 510*320*370mm(1pc/carton)
