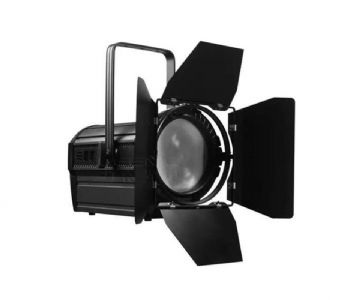

·This television projector light equips high power 300W LED lamps as the light source, it’s energy saving. And it uses high efficiency optical lens, light soft. It’s a best choice for film and television performances, studio and other places.



Features



·The internal adopts full copper radiator large area, good heat dissipation, ensure the lifespan of the LED Lamps;



·DMX adjust the beam angle of the zoom from spot to flood;



·Through efficient optical lenses, with special heat dissipation design, make the light is downy, small stray light, no glare, eyes more comfortable;



·Use the LED video projector scheme, the light energy saving 80%;



·Because of almost no infrared radiation, it has greatly improve work environment.



Technical Specifications



Light Sources



·LED: 1pc 300W COB LED Lamps



·Lifespan: 500,000h



·Color: CW, WW optional



Optics



·Beam angle: 15-60degree



·Dimmer: 0-100% linear dimmer



Light Output



·Luminous flux: 2190



·Illuminance: 470 Lux (6m 15°)



·Optimal projection distance: 10-45m



Control



·Control mode: DMX-512; Auto run



·DMX channel: 1CH, 2CH



·Display of control panel: digital tube



·Noise: under 45db



Power Supply



·Related voltage: AC100V-240V, 50/60Hz



·Related power: 350W



Construction



·Body dimension: D455*W265*H292mm



·Net weight: 4.8kg



·Shell color: black



·Shell material: aluminium die casting



Working Environment



·Working temperature: -25-40℃



·Cooling: Radiator and Fan



·Protection rating: IP20



Standard Configuration Spare Part List



·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)



·User manual: English version user manual



Optional Configuration Spare Parts List



·Clamps: different style clamps optional



·Safety rope: different size safety ropes optional



Package



·Carton board package size: 510*320*370mm(1pc/carton)



·N.W/G.W/V.W: 4.8kg/6kg/13kg



·Flight case package size: 745*640*650(4pcs/flight case)



·Net weight of flight case: 30kg



·N.W/G.W/V.W: 24kg/54kg/63kg



·Flight case package size: 1100*640*650(6pcs/flight case)



·Net weight of flight case: 34kg



·N.W/G.W/V.W: 36kg/70kg/92kg
