300W Bicolor LED Video Panel Light
The broadcasting must use the no fan silent high power LED Video Panel Light. To meet this request, we have designed this new 300W led video panel light with two small mute fans. It’s can keep 280-300W light output for every color, and has 3000-6000K color temperature adjustment. This light is very suitable for large-scale tv station, studio, multi-function room and other video places.

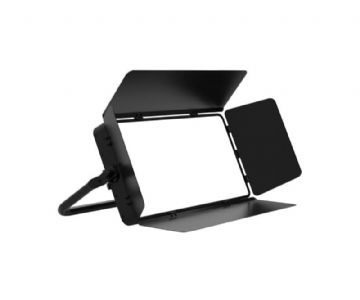

300W Bicolor LED Video Panel Light
Model:OX-HTC1488C
Features
The light’s lighting function is controlled by DMX-512, very convenient;
Using bead LED chips, pure color temperature, can realize 0-100% dimmer;
The light body adopts outside frame design, the modeling is beautiful, installation very convenient, safe and reliable;
High power output, every color can keep output 300W;
3000-6000K color temperature adjustment;
Technical Specifications
Light Sources
LED:1488pcs 0.5W high CRI and high brightness LED bead chips
Lifespan:50,000hours
Color: from warm white to cold white
Optics
Beam angle: 120degree
Frequency: 24K flick free light source drive system
Dimmer: 0~100% linear dimmer
Light Output
CRI: Ra≥95
Special CRI: R9≥90, R15≥90
Color temperature: 3000k-6000k adjustable
Control
DMX channel: 4CH/5CH
Control mode: DMX-512, RDM, Demo mode, Manual, Dimmer rotary knob(wireless remote control option)
Control panel: 2.4in LCD display + 4 buttons
Power Supply
Related voltage: AC90V-240V, 50/60Hz
Related power: keep output 280-300W
Construction
Body dimension: D640*W98*H425mm
Net weight: 12.5kg
Shell color: black
Housing material: aluminum alloy
Working Environment
Working temperature: -25-40℃
Cooling: aluminum radiator+ light body + a small mute fan
Protection rating: IP20
Spare Parts
Cable: 1set DMX in and DMX out signal cable, and 1set Power in and Power out power cable with plug [standard configuration]
Light visor: 1pc light visor [optional configuration]
Package
Carton board box package size: 690*420*300mm(1pc/carton) [f:20-08-07]
N.W/G.W/V.W: 12.5kg/15kg/18kg
