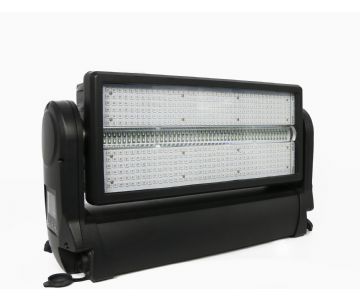

LED Outdoor Strobe  Moving Light

 MODEL:OX-S01



Strobe Panel LEDs

LED Type: 5050 0.6W RGB 3in1 LEDs

LED Count: 480

LED Colors: RGB

LED Segments: 8 (2 x 4)



Strobe Tube LEDs

LED Type: 3535 3W 6500K LEDs

LED Count: 144

LED Colors: Cool-White

LED Segments: 4



Movement

Resolution: 8-16 Bit

Position Feedback: yes

Tilt (Degrees): 185°



Control

Control Modes: 5CH / 34CH

Display: illuminated graphic LCD

Protocol: USITT DMX-512, RDM

RDM: Bidirectional communication

Cooling: temperature controlled, overheating protection



Effects

Dimmer: 0-100% electronic

Shutter: electronic, max. 20 Hz

Internal Effects: LED Macro Effects



Connectors

Signal connection: Seetronic IP65 XLR 5-Pin or 3-Pin In/Out

Power Input: Seetronic powerCON TRUE1 In/Out



Operating Condtions

Mains voltage: 100-240V AC / 50-60Hz

Power: 750W

Maximum ambient temperature: -30°C / 86°F, 50°C / 122°F

Operating Position: any



Mounting Options

Standing: Rubber feet

Hanging: Omega-Bracket

Safety wire attachment: foldout eyelets



Shipping

Single fixture: cardboard (inner and outer cartons)

Tourpack: 4-way Flight Case



Housing Colors

Standard colors: black



Dimensions & Weight

Length: 482 mm / 18.9 in

Width: 178 mm / 9.0 in

Height (head horizontal): 243 mm / 9.5 in



Weight

N.W: 10 kg
