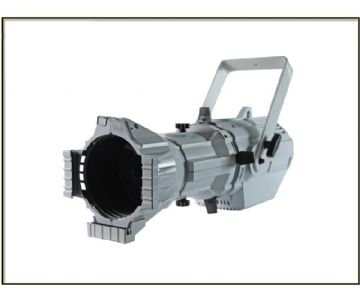

180W Fixed Lens LED Profile Spot Leko
180W Fixed Lens LED Profile Spot Leko





180W Fixed Lens LED Profile Spot Leko

Model:OX-P180B



·This is a new designed led profile spot light, this light has high quality, brightness, and other good features. This light is very suitable for the studio, TV, show and other places.



Features

·Compact appearance, high quality;

Good price, good market accept ability;

Powerful, smooth dimmer.

Technical Specifications

Light Sources

·LED: 1pcs 160W white LED Lamp

·Lifespan: 50000h

·Color: Cold white, or warm white

Optics

·Beam angle: 19/26/36/50degree optional

·Dimmer: 0-100% linear dimmer, 4 fine dim function

·Strobe: 1-25 times/second

·CRI: Ra≥92

·Color temperature: 3200K/5600K optional

Light Output

·Illuminance: 3410 Lux (4m 19°, 5600k )

·Optimal projection distance: 4-30m

Movement

·Focus: manual and pre focus

·Light cut: manual, 4 slices

Control

·Control mode: DMX-512; Master/slave mode; Demo mode

·DMX channel: 3CH

·Display of control panel: LCD display + 4 buttons

Power Supply

·Related voltage: AC100V-240V, 50/60Hz

·Related power: 180W

Construction

·Body dimension: D645*W260*H250mm

·Net weight: 7.5kg

·Shell color: black/white

·Shell material: ABS(fire proofing, grease proofing, high temperature resistance)

Working Environment

·Working temperature: -25-40℃

·Cooling: massive copper tube convertor+high quality mute fan

·Protection rating: IP20

Standard Configuration Spare Part List

·Cable: 1pc 3-pin DMX cable, 1pc power cable with plug(America standard, Euro standard, or other standard)

·User manual: English version user manual

Optional Configuration Spare Parts List

·Clamps: different style clamps optional

·Safety rope: different size safety ropes optional

Package

·Carton board box package size: 800*350*340(1pc/carton)

·N.W/G.W/V.W: 7.5kg/8.8kg/20kg

·Carton board box package size: 810*670*370(2pcs/carton)
